E-Invest’s range of steel grating includes various types of grating and mesh, including pressed grating, manufactured entirely using the latest production methods. Pressed grating is produced on a fully computerized production line, so its individual components are completely repeatable and unified. Thanks to the automation of the production process of steel grating – bridge grating, welded, it was possible to achieve high efficiency and quality of the manufactured products, which are fully compliant with strict DIN standards.

The final product – wema bridge grating, made in the form of welded grating, has a favorable price, because we use a waste-free manufacturing method for its production. When making pressed gratings, E-Invest places the greatest emphasis not on mass production, but on an individual approach to each customer. Thanks to this, the realized order will satisfy the recipient, in terms of the size of the grating, the type of mesh, the arrangement on the platforms or the method of fixing.

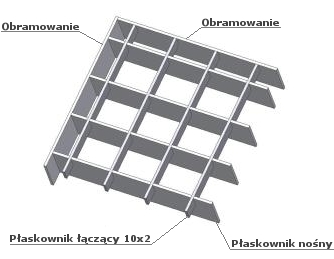

krata prasowana

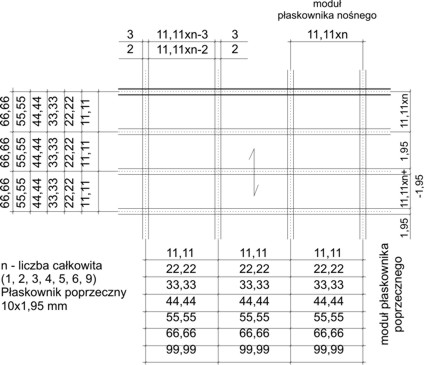

schemat kraty prasowanej

Pressed gratings are manufactured entirely on a modern, fully computerized technological line. Automation of the production process has made it possible to achieve hitherto unavailable efficiency and quality of the produced gratings, in accordance with strict DIN standards. By introducing a waste-free production method, we have also managed to significantly reduce the cost of the final product.

In the production of pressed gratings, the greatest emphasis is not on mass production, but on an individual approach to each Order, taking into account the requirements specified by the Customer for the size of the gratings, the type of mesh, the layout on the platforms and the method of fixing.

Below is a diagram of the pressed grating, a table with types of supporting flat bars and the standard distribution and mesh size for pressed grating.

Below are the available heights of the supporting flat bar and the thickness of the cross bars, as well as the standard mesh division for Mostostal-type welded gratings

Diagrams

see diagram

see diagram

height of gratings h [mm]20 25 30 35 40 5020 25 30 35 40 50
thickness of supporting flat bar c [mm]23
