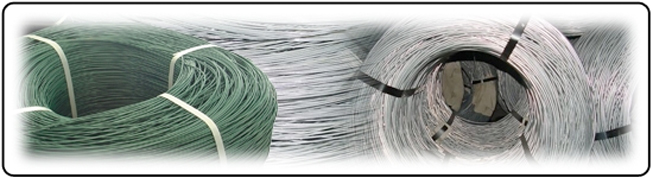

Types of wires used

For industrial use there are a number of metal products, which, depending on the needs, are used as independent elements or components included in various constructions. An excellent example of this are various types of wire, on the basis of which, among other things, mesh and fencing are produced in many variants.

Among them are mentioned, among others:

• stainless wires – available in a wide range of dimensions and in many states of hardness, these are, for example, chrome-nickel wires,
• spring wires – as the name suggests, they are used for the production of springs,
• heat-resistant wires – due to their properties, they are ideal, for example, in the role of welding wires,
• galvanized wires and bare wires for galvanization – the most commonly used types are D6-2 standard DIN 17140 and C1006 standard ASTM A510 M-93,
• coated wires – very often appear as mounting wires, the task of which is to improve the installation of fences and ensure their stability.

E-Invest offers customers a wide range of choices in wires and other metal products.

INNOVATIVE
Standards				Chemical composition
DIN	PN	AISI	GOST	C	Si	Mn	P	S	Cr	Mo	Ni
1,4006	1H13	410	12Ch13	0,1	0,8	0,8	0,04	0,03	12÷14	–	0,6
1,4016	H17	430	12Ch17	1,0	0,8	0,8	0,04	0,03	16÷18	–	0,6
1,4301	0H18N9	304	08Ch18N10	0,7	0,8	2,0	0,045	0,03	17÷19	–	9-11
1,4310	1H18N9	301	08Ch18N10T	0,14	0,8-1,2	2,0	0,035	0,03	17÷19	–	8-11
1,4541	1H18N9T	321	12Ch18N10T	0,1	0,8	2,0	0,035	0,03	17÷18,5	–	10-11
1,4571	H17N13M2T	316	10Ch17N13M2T	0,03	0,8	2,0	0,045	0,03	16-18	2-2,5	11-14
1,4404	00H17N14M2T	316L		0,03	0,8	2,0	0,045	0,03	16-18	2-2,5	12-15

REFRIGERANT
Standards				Chemical composition
DIN	PN	AISI	GOST	C	Si	Mn	P	S	Cr	Mo	Ni
1,4841	H25N20S2	310	20Ch25N20S2	0,2	2÷3	1,5	0,045	0,03	24-27	–	18÷21
1,4864	H16N36S2	330		0,15	1,5÷2	2,0	0,045	0,03	1-17	–	34-30
1,4828	H20N12S2	309	20Ch23N13	0,20	1,0	2,0	0,0045	0,03	22-24	–	12-15

SPRING WIRES

We most often use wire grade DIN 17223, class A PN71/M-80057 from 1100-2100 MPa.

GALVANIZED WIRES AND BARE WIRES FOR GALVANIZATION

According to the needs and individual wishes of the customer, we use wires with different thicknesses of zinc coating from 40 to 300 g/m2.

In the case of low-carbon bare wires for galvanizing, steels with silicon content of up to 0.03% are most favorable.

Less favorable are steels containing silicon in the range of 0.12 ÷ 0.3.

The most commonly used grades are: D6-2, DIN 17140 standard, and C1006 ASTM A510 M-93 standard.

Galvanized and coated wire:
– wire diameter:
O 2.0 x 3.1 mm O 2.5 x 3.6 mm

Galvanized wire:
– wire diameter:
O 2.8 ÷ 4.0 mm
